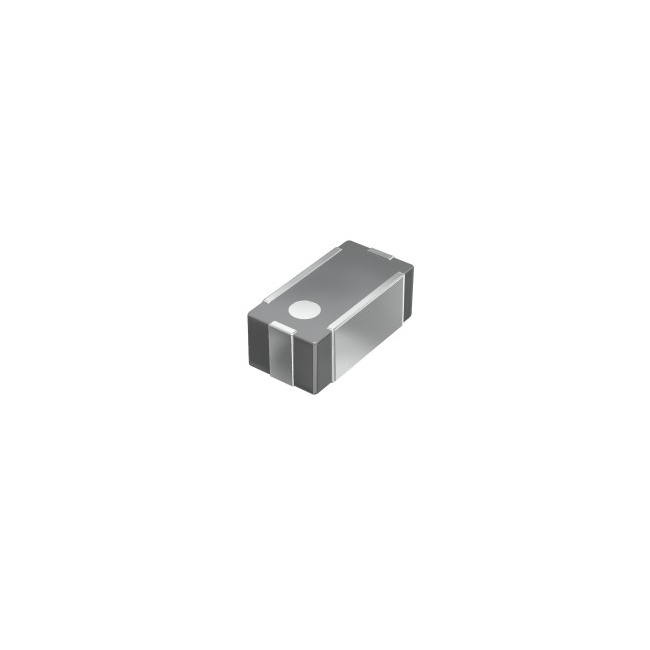

TAIYO YUDEN Multilayer Ceramic Device FI168W1697B1-T

• Brand: Taiyo Yuden

  model: FI168W1697B1-T

  Type: Multilayer Ceramic Device [Multilayer Ceramic Device (2-Branch Coupling)]

  Product specifications

  supply system	Mass production (recommended)
  System	W-CDMA/CDMA/GSM/LTE /ISM900
  Passband frequency 1(f1)	699 to 2690 MHz
  Insertion loss 1 (max)(in f1)	0.2 dB at 699 to 2025MHz (+15 to +35 ℃)
  Insertion loss 2 (max)(in f1)	0.25 dB at 699 to 2025MHz (-40 to +85 ℃)
  Insertion loss 3 (max)(in f1)	0.28 dB at 2170 to 2690MHz (+15 to +35 ℃)
  Insertion loss 4(max)(in f1)	0.38 dB at 2170 to 2690MHz (-40 to +85 ℃)
  VSWR1 (max)(in f1)	1.2 at 699 to 2690MHz
  RFCoupling1 (min)(max)(in f1)	17.1dB (min) 29.5dB (max) at 699 to 2620MHz
  Directivity of coupler (min)(in f1)	18dB at 699 to 2620MHz
  Input impedance	50 Ω
  Output Impedance	50 Ω
  size (L)	1.6 ±0.10 mm
  size (W)	0.8 ±0.10 mm
  size (T)	Max 0.5 mm
  Temperature range for use	-40 to +85 ℃
  RoHS Compliance (10 subst.)	Yes
  REACH Compliance (209 subst.)	Yes
  IEC62474 (Ver. D20.00) Compliance	Yes
  Halogen Free	Yes
  Applicable welding methods	Reflow
  package	Taping Paper 8000pcs
